Looped flume

To submit your structure to combined wave and current conditions.

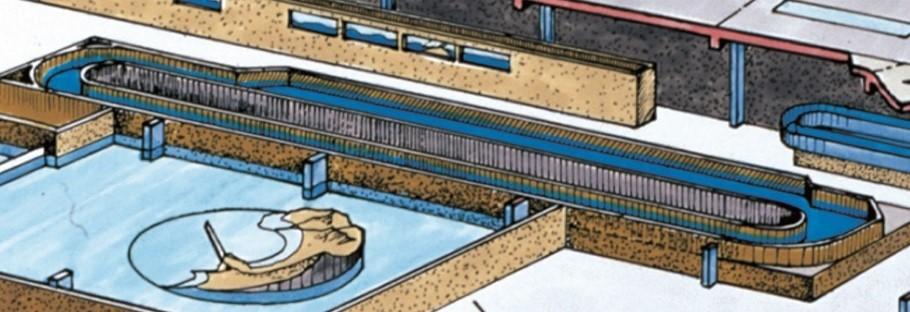

Outline drawing of the looped flume | Artelia Hydraulics
Outline drawing of the looped flume

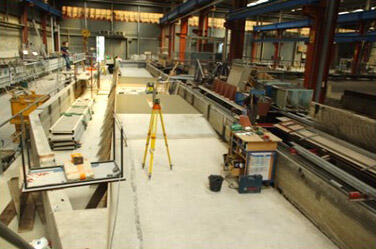

Looped flume| Artelia Hydraulics
Looped flume
Dimensions: L= 48 m (31 m useful) x l= 3.2 m x h=0.8 m

Current generators (2-screw): 1 m3/s max

Wave generator: with flat displacement, operated by hydraulic jack

Waves generated:

  • 1.0 s < Tp < 2.5 s
  • max. wave height: 0.10 m
  • max. water depth: 0.60 m
