Force and pressure measurement

Load cells for measuring integrated forces (strain measurement): precise measurement of forces exerted on a wave wall, the walls of a vertical breakwater, etc.; 3- or 6-axis load cells.

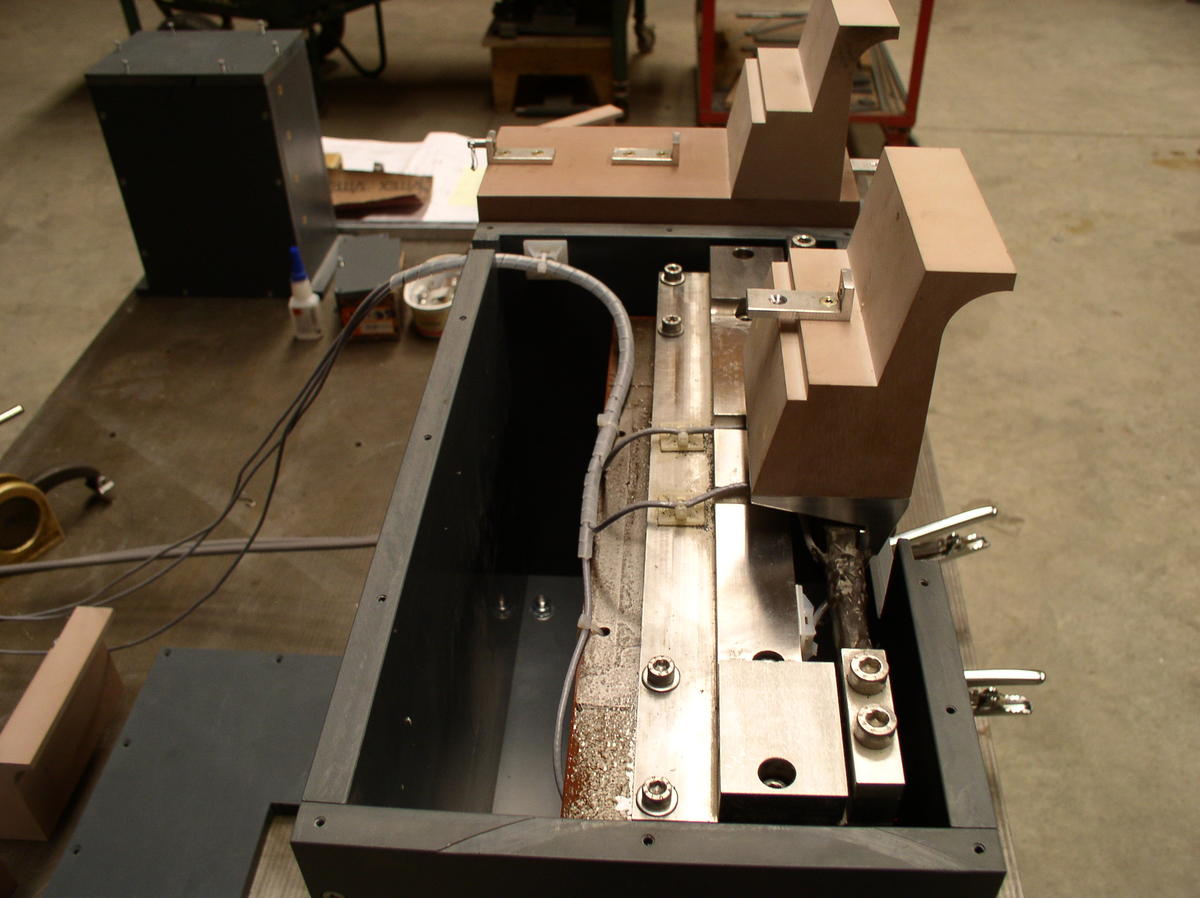

3-axis load cells - Forces on a crest wall | Artelia Hydraulics
3-axis load cells - Forces on a crest wall

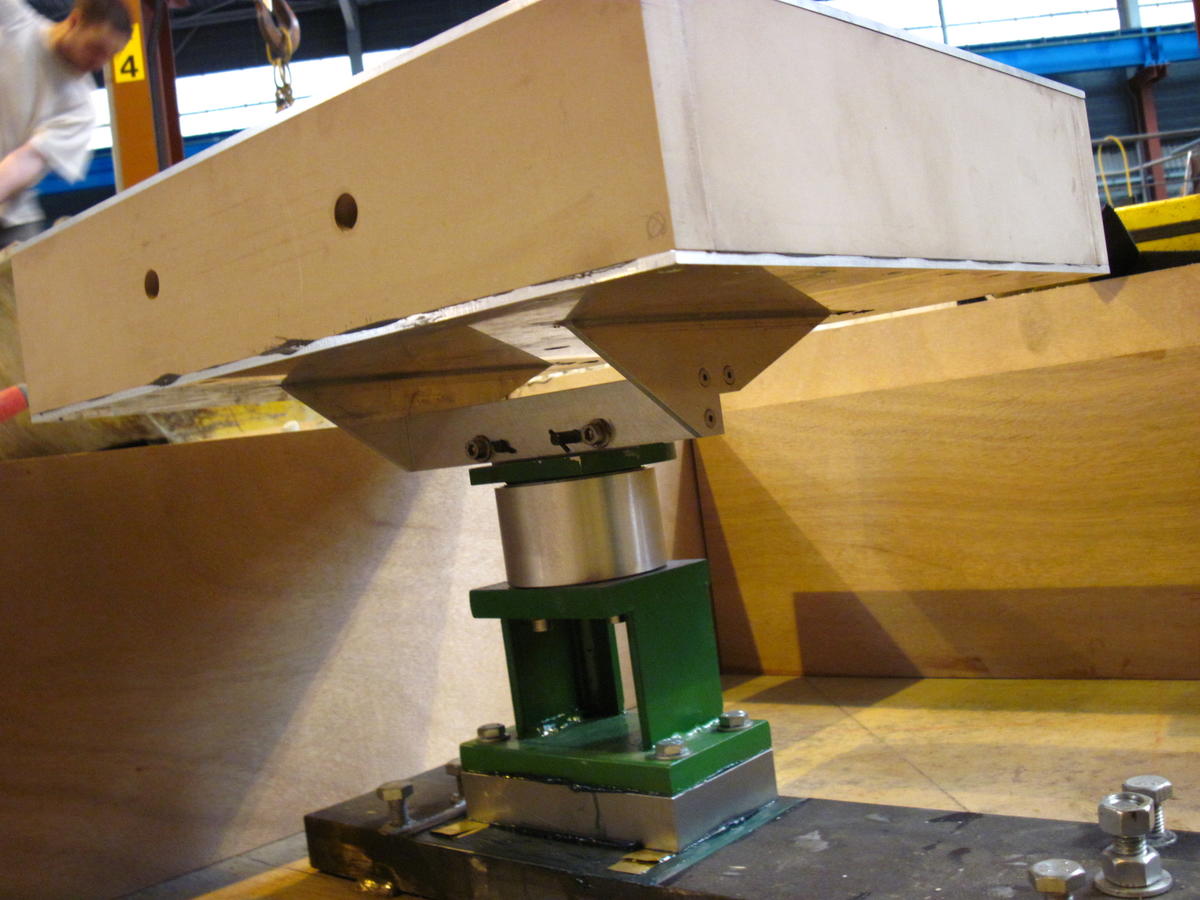

6-axis load cell - Forces on a loading platform | Artelia Hydraulics
6-axis load cell - Forces on a loading platform





Pressure probes

  • piezoresistive probes, for measuring hydrostatic pressure and low-frequency pressure fluctuations

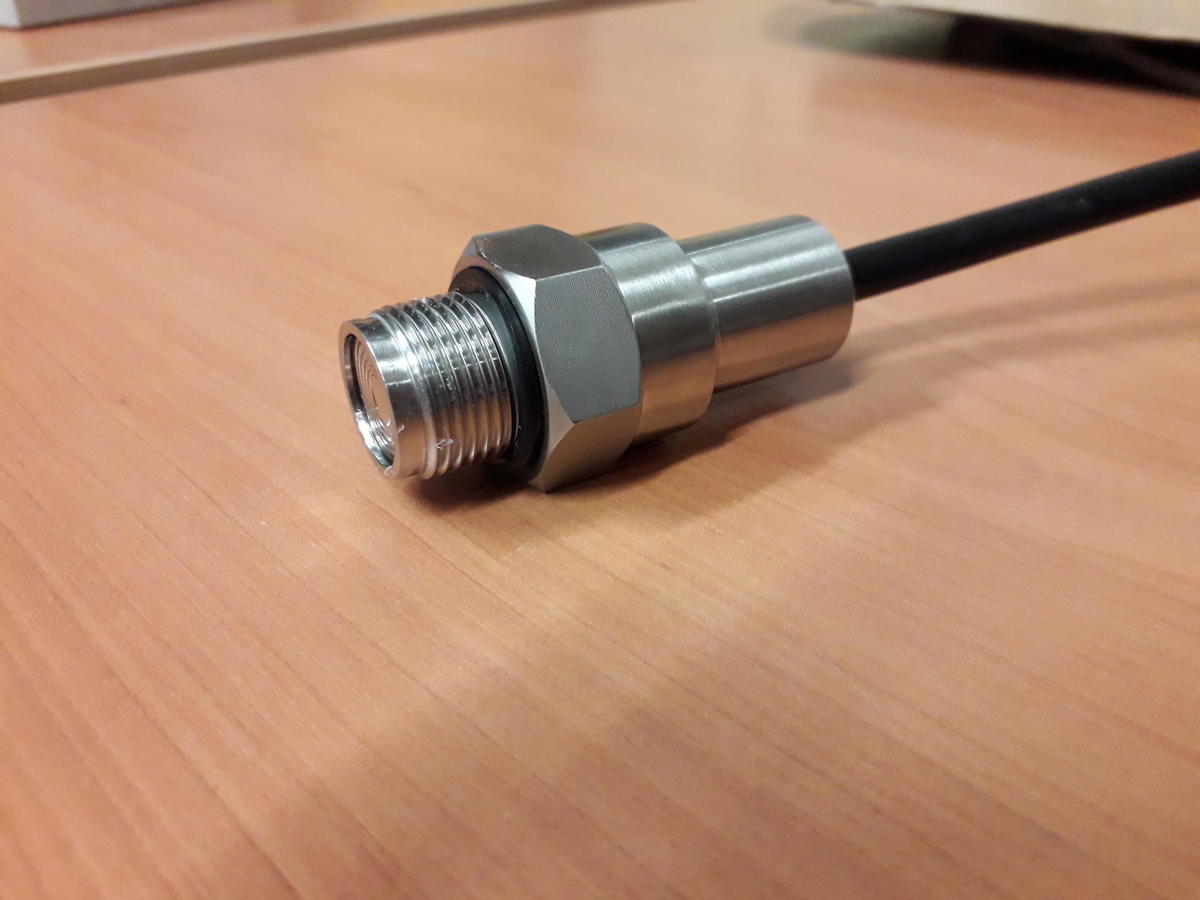

Piezoresistive pressure probe | Artelia Hydraulics
Piezoresistive pressure probe

  •  piezoelectric probes, for measuring impact phenomena at higher frequencies

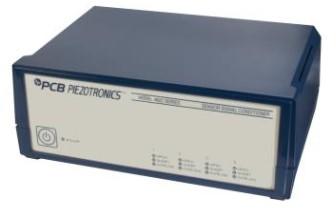

Conditioner for a piezoelectric pressure probe | Artelia Hydraulics
Conditioner for a piezoelectric pressure probe

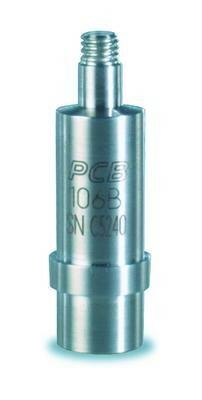

Piezoelectric pressure probe | Artelia Hydraulics
Piezoelectric pressure probe

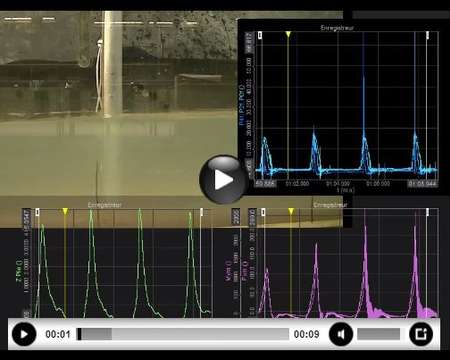

Measurement of forces and impacting pressures on a bridge pier subjected to swell

Instrumentation of a bridge pier subjected to breaking waves in the coastal zone: the metrology implemented allows the acquisition of pressures located at ten points of the pier via piezo-resistive sensors, but also of overall efforts via a load cell located under the pile. This double acquisition allows the characterization of the structure from a global point of view, but also to identify targeted areas subjected to impacting pressures due to the wave breaking.

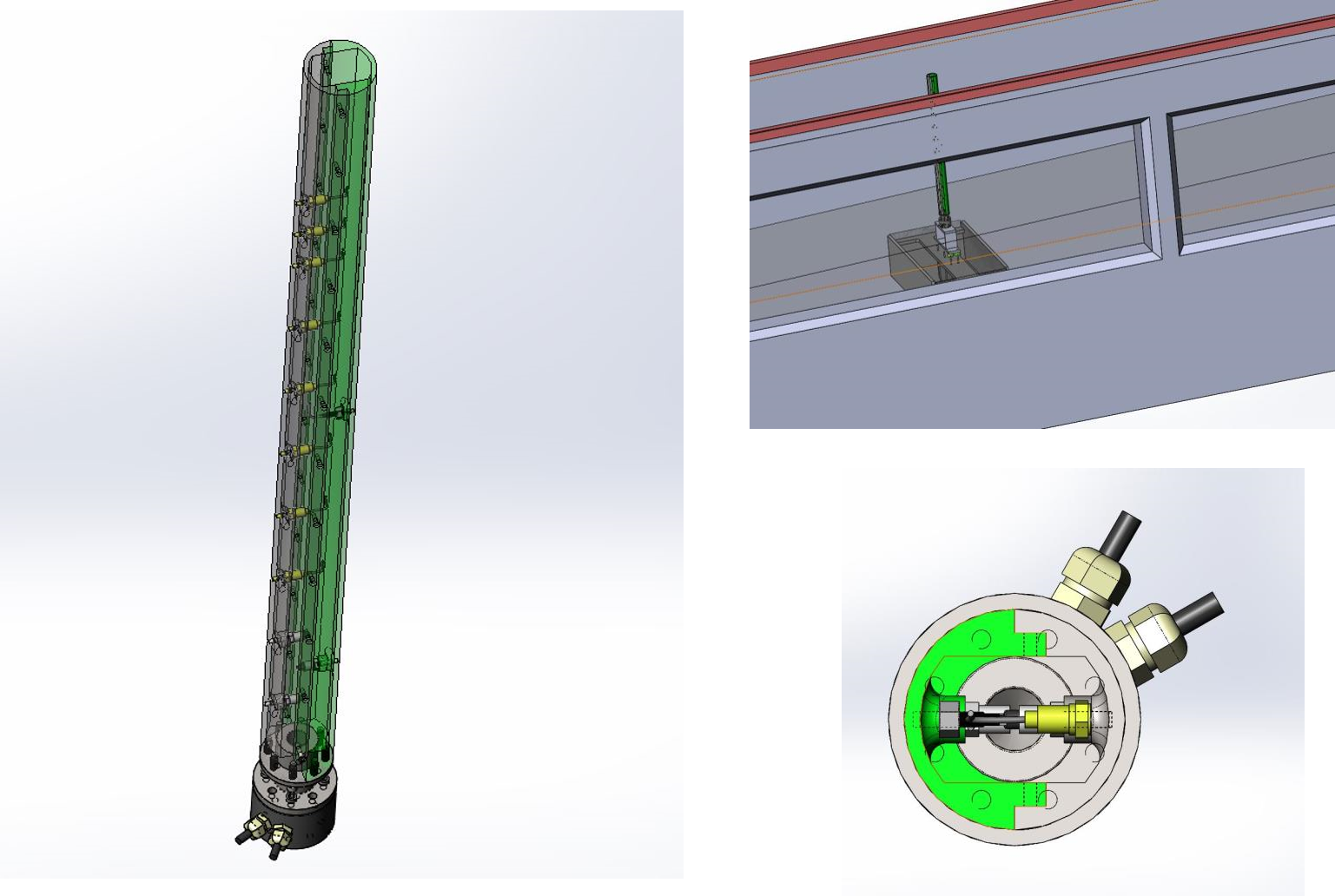

Model of instrumented bridge pier in wave flume | Artelia Hydraulics
Model of instrumented bridge pier in wave flume
