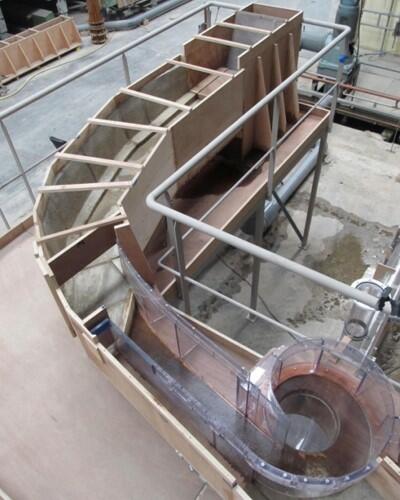

ContextTorrent upstream and downstream of the water intake. Bell shaped vortex drop shaft
In the context of the protection of the city of Genoa against violent and recurring torrential floods, Genoa city council commissioned Artelia to develop a physical scale model with a view to checking the dimensional design of the water intake and the underground diversion of the Fereggiano torrent.
Aim of the physical scale model
The general aim of the project is to divert part of the Fereggiano torrent whenever it is in flood, from upstream of the city of Genoa to the sea via an underground pipe (5.2 m diameter) passing under the city. A first physical scale model was developed by Artelia in 2006. Following the review of the project, the aim of the new model is to validate the final dimensional design and the proper hydraulic operation of the structures.

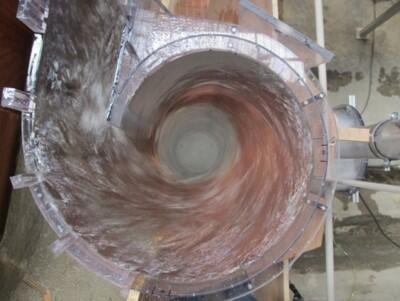

Description of the physical scale modelFlow at the vortex inlet
